Wooden Camera Director's Monitor Cage V3: Built for Abuse

A director's monitor cage is a boring purchase right up until the day a client is standing next to video village holding your only monitor by its bare edges. Then it stops being boring. The Wooden Camera Director's Monitor Cage V3 exists to stop that from happening, and for the most part it does the job.

It's light, it ships with a bag of hardware deep enough to mount almost anything, and it's been the default on a lot of carts since the first version. But it sits at 3.7 stars across 29 user reviews, which is a strange number for gear this common.

That split is the interesting part. People running SmallHD monitors and Teradek receivers tend to love it. People who show up with an Atomos recorder and a third-party battery plate tend to write angry paragraphs.

What You Get, and What You Don't

The V3 is a rectangular aluminum frame with two carbon fiber handgrips on 15mm rods, a swing-away back plate, a collapsible sun hood, and a padded neck strap. Total weight is a pound. That's the headline spec, and it's the one thing nobody argues about.

Wooden Camera's own product page for the V3 rates it for displays up to 9 inches, which covers basically every on-camera monitor a director actually stands behind.

The Hardware Pile

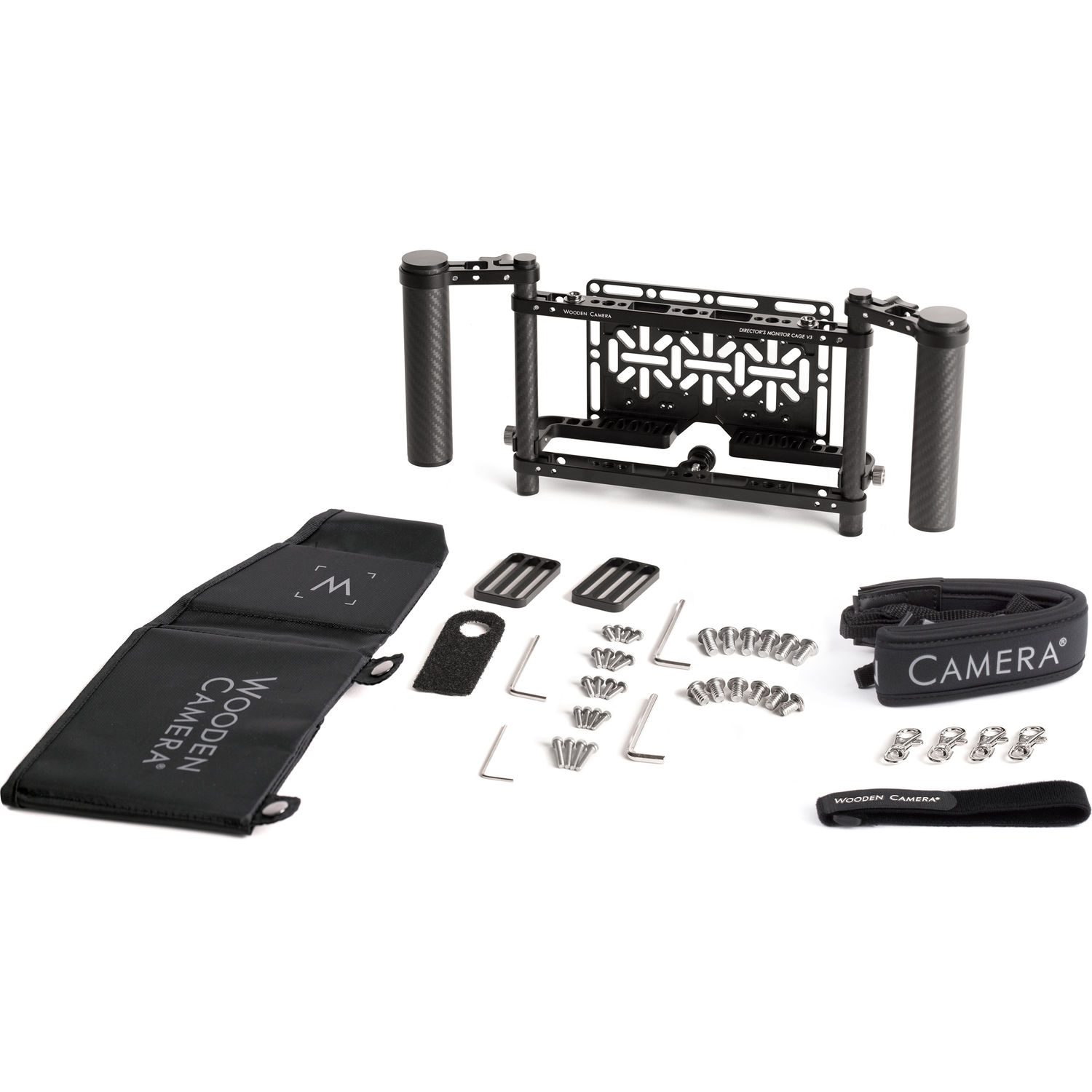

Open the box and you get four allen keys, two offset adapters, and roughly two dozen screws in five sizes. Button heads for the monitor, M3 screws for V-mount and Gold mount plates, 4-40 socket caps for Teradek receivers, and pan heads for the Teradek XT and LT bodies.

Reviewers bring this up constantly as a positive. One noted the cage "comes with a ton of extra pieces of hardware to help you mount anything to it." Another said there's "enough hardware here to mount just about anything," and called the included tools the best part of the purchase.

The frame carries six 15mm rod ports, two on each base and one in each handle, plus a scattering of 1/4"-20 and 3/8"-16 threads across the top and bottom bars. Underneath sits a 5/8" baby pin receiver for stand mounting. Remember that one. It comes up later.

What's Missing

No battery plate. That surprises people, and it shows up in reviews often enough to be worth flagging before you order. One reviewer built their entire write-up around it, warning that "you need to buy a battery plate for this to work correctly."

So budget for a V-mount plate with a dual 15mm rod clamp, or skip the sourcing headache and get the Gold Mount bundle version of the cage that ships with a plate included.

Monitor Fit Is the Whole Story

Here's where the review split comes from. The V3 uses a universal plate that mounts your monitor through 1/4"-20 points on its side, top, or bottom. Universal is doing a lot of work in that sentence.

SmallHD and Teradek Users Have It Easy

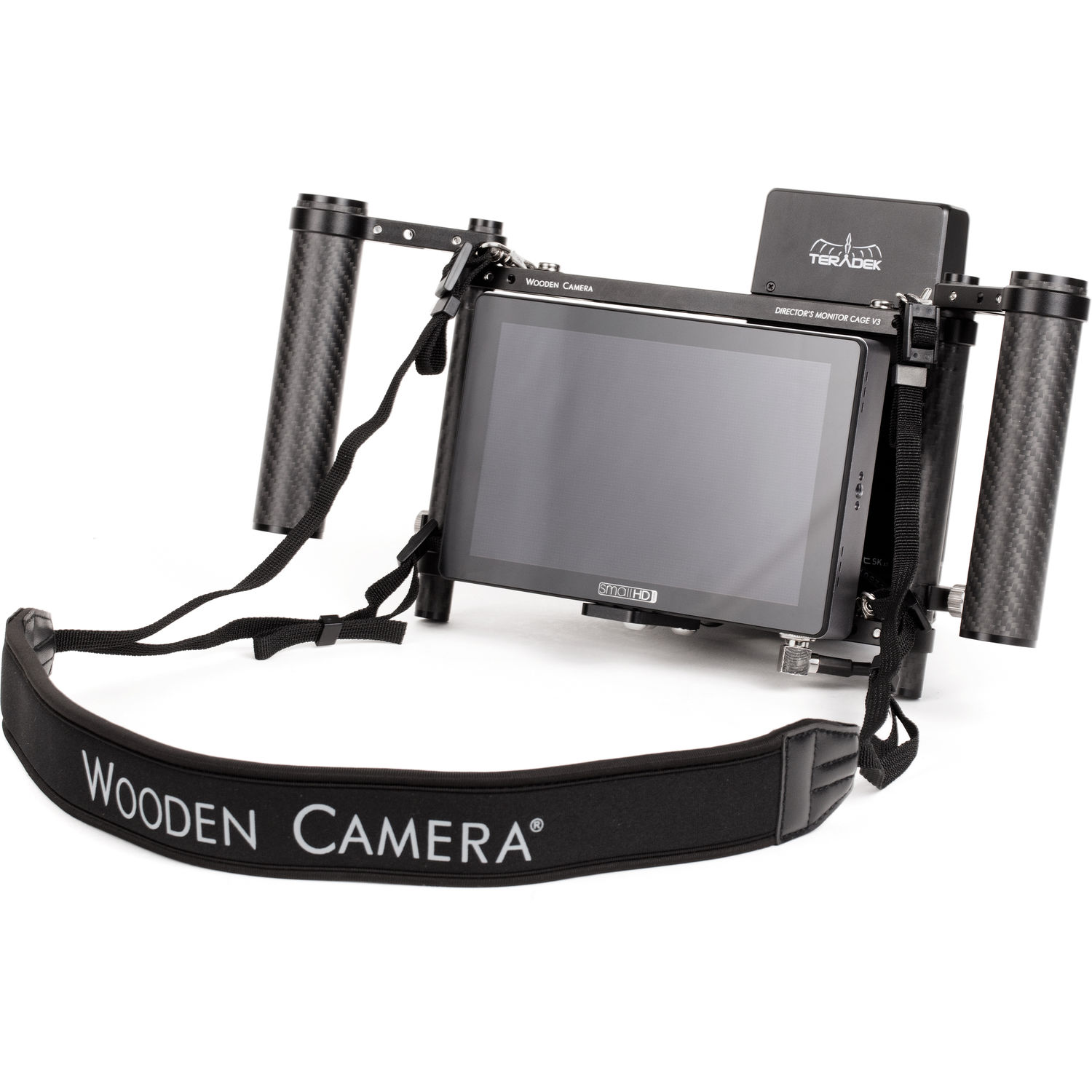

Running a SmallHD 702 Touch, a Cine 7, or a Focus? The cage drops together in a few minutes. A reviewer with a 702 Bright and a Hollyland transmitter said setup was easy and called the build quality excellent, and another paired a SmallHD panel with a Teradek receiver and described the whole rig as simple and convenient.

The mounting geometry was clearly drawn around that combination. Screw patterns for Teradek receivers are pre-drilled into the swing-away plate, and a current Bolt 6 LT 750 receiver bolts straight on. If your kit already looks like that, most of what follows won't apply to you.

Atomos and Everyone Else

Bring something else and it gets ugly fast. One reviewer threw three monitors at it and reported that the Atomos Ninja Inferno wouldn't fit at all because the side rods are too short to extend, the Ninja V was an awkward size, and a Feelworld 7-inch barely fit but wiggled side to side.

Shogun owners have their own problem. A reviewer with a Shogun Inferno found no way to attach a BNC input once the thing was assembled. Another said the Shogun sits too far forward, so it isn't protected by the frame and the sun hood won't reach around it.

Even the Cine 7 isn't clean. One reviewer pointed out that a single non-locking mount point connects the monitor to the cage, so it never feels fully solid, and that the top and bottom bars sit behind the glass instead of in front of it. If you were hoping the frame protects the screen, it doesn't.

Where It Falls Down

Two complaints come up more than any others. Both are mechanical, not a matter of taste, and neither one is a deal-breaker on its own.

The Baby Pin Wobbles

That 5/8" stand receiver is the single most criticized part of this cage. One reviewer said it's "so loose even when tightening the screw" that the monitor bounces left and right instead of staying square. Another was blunter about it and suggested finding a different way to attach the cage to a stand entirely.

A third put it mildly, saying the lightstand mounting hole "could fit better, a little wiggle." Three separate people describing the same slop is a pattern, not bad luck. Planning to park this on a C-stand for a long shoot? Budget for a better mount.

Handles Slip on the Rods

The carbon grips clamp to 15mm rods with thumbscrews, and those thumbscrews need to be cranked hard. One reviewer resorted to a thin strip of tape on the rod for extra grip and still described the handles as moving under load. Another warned to tighten the screws "super tight or the handle can slip off."

The grips themselves also draw criticism. They're slippery bare carbon with no texture, and several people asked for some kind of rubberized surface. Small thing on paper. Real thing at 5am with cold hands.

Power, Wireless, and the Swing-Away Back

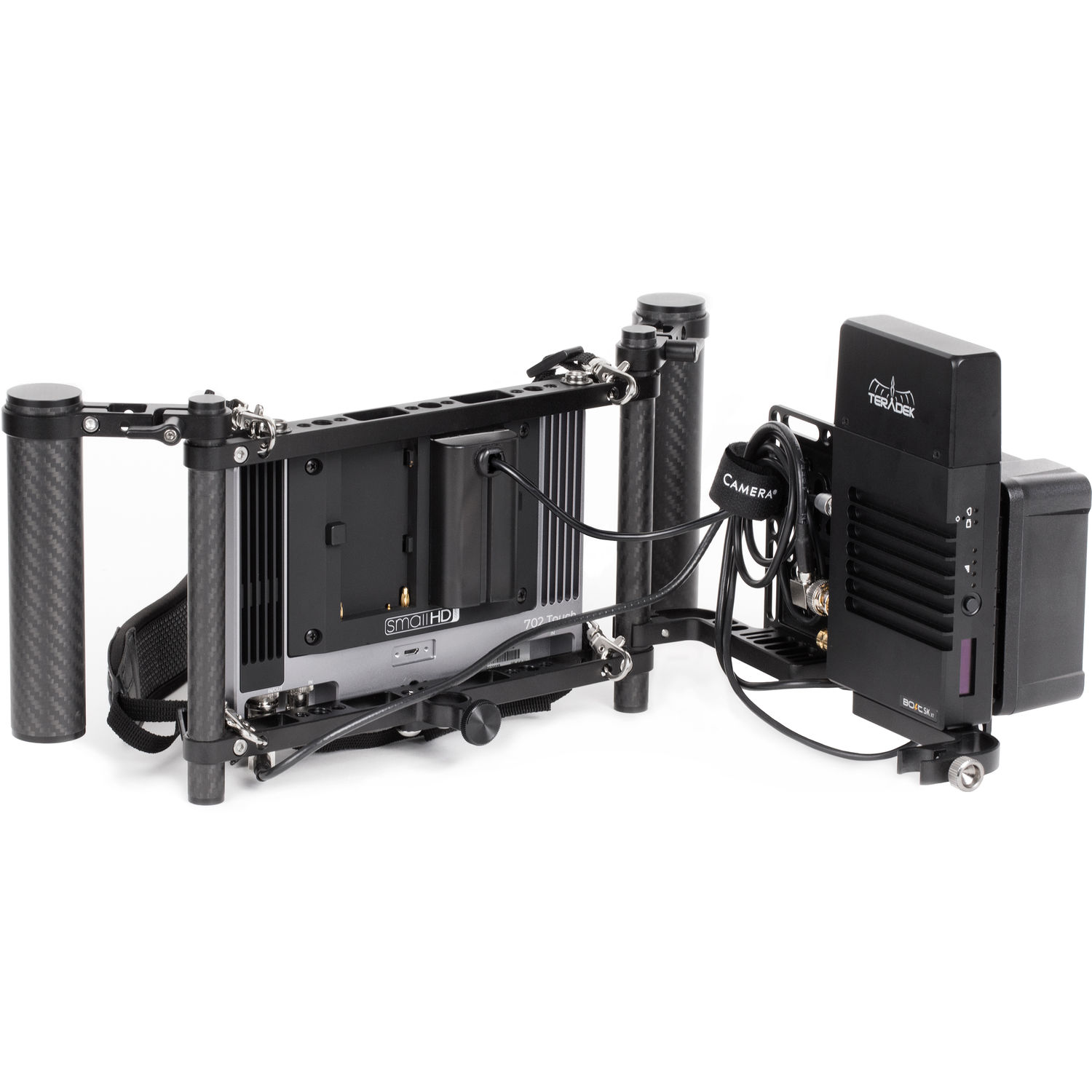

The swing-away rear plate is the one feature people praise without qualification. It opens for access to receiver menus and cable routing, then closes with everything tucked inside. One reviewer called out how tidily cables hide once the door shuts, though they wished it opened without nearly unscrewing one side first.

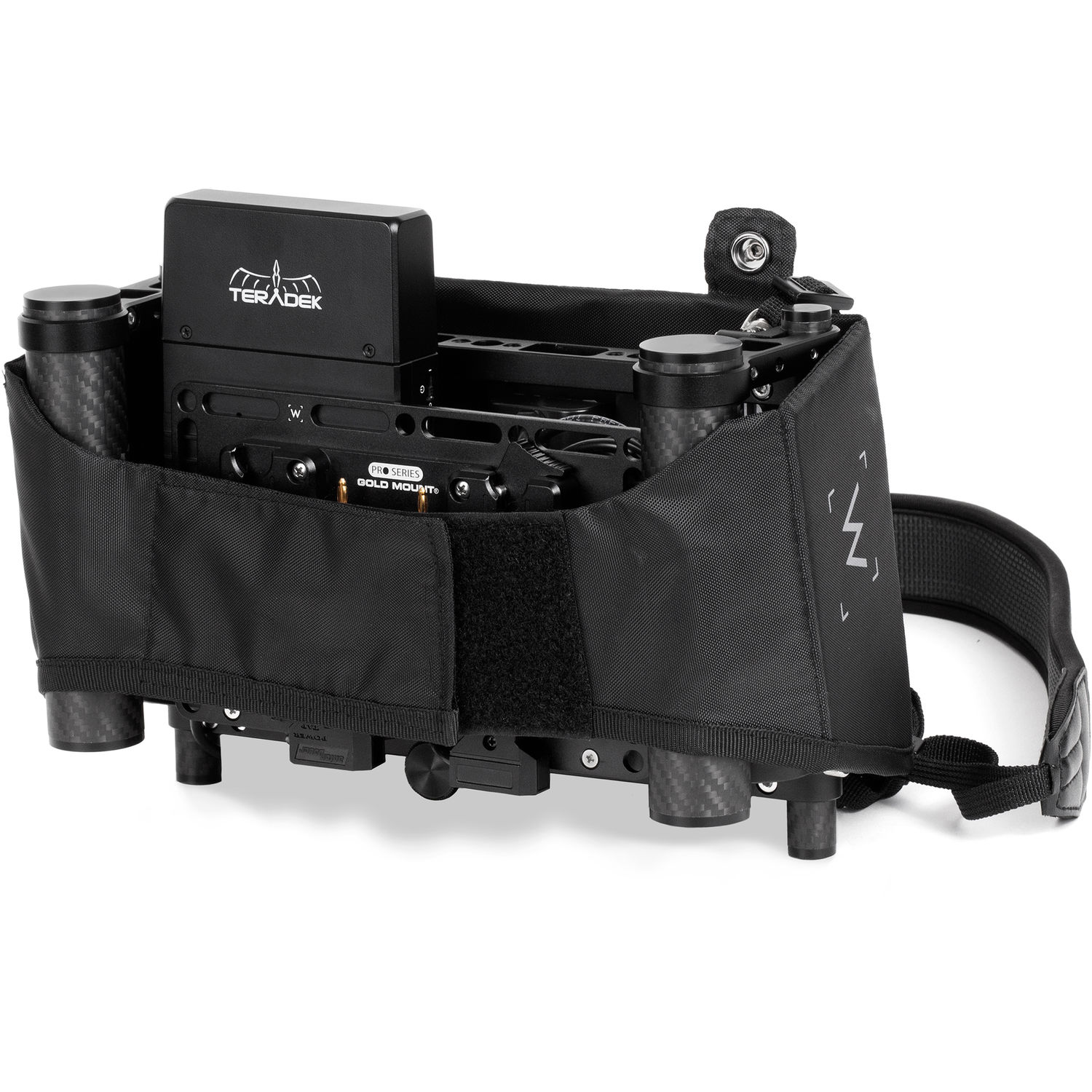

There's room back there for a battery plate plus one or two wireless receivers. A reviewer who runs this as a rental package explained why they still prefer the modular approach over an all-in-one smart monitor. They pair whatever receiver they want with whatever monitor they want, then swap either piece when a better version ships.

That same reviewer rated the Wooden Camera handles as sturdier than SmallHD's own, and made a point about the strap. It attaches at four points instead of two, which keeps the rig from swinging into your ribs every time you turn.

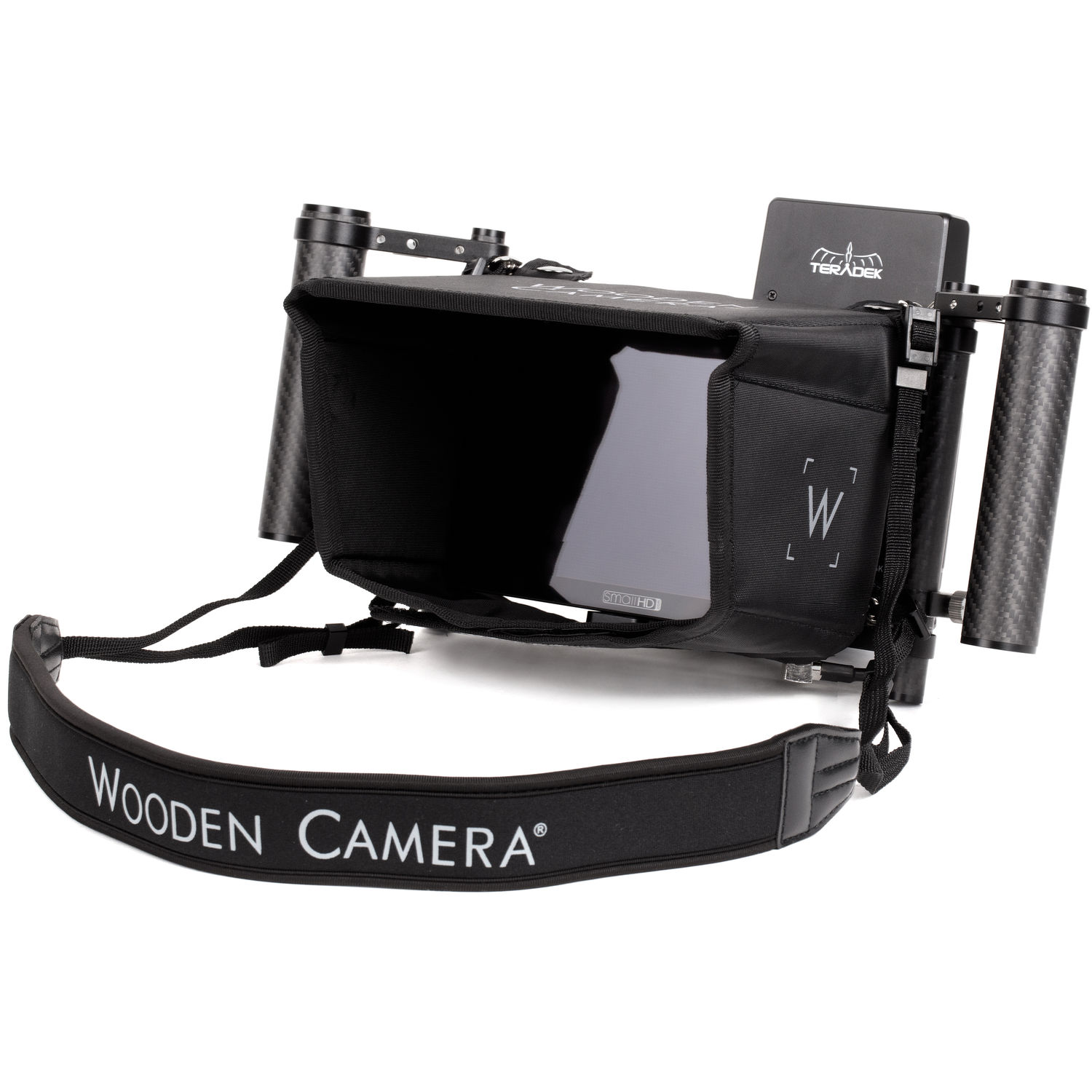

The sun hood is the weak spot. Multiple reviewers called it flimsy, one received a unit with a snap already damaged from overtightening at the factory, and a Cine 7 owner found the antennas blocked the hood snaps from reaching their attachment points. It does fold flat around the cage for storage, which is more than most hoods manage.

Alternatives, and Who This Is Actually For

Cheaper and More Flexible Cages

If the fit problems above describe your kit, cheaper and more flexible options exist. The Nitze Director's Monitor Cage for monitors up to 9 inches uses a more open cheese-plate design that takes third-party gear without a fight, and Nitze also makes a version sized for 10-inch displays if you've moved up to a bigger panel.

The Proaim universal 9-inch director cage sits at the budget end and gets the basic job done, though it's heavier and the handles are cruder. Going the other way, if two people need eyes on the same feed, the dual-monitor version of the V3 holds two displays on one frame.

Monitor choice matters more than cage choice here. Our roundup of the best on-camera monitor options walks through brightness and scopes, and the wider camera field monitor comparison covers what changes when you move from a 5-inch to a 7-inch panel. The SmallHD 702 Touch is available at B&H and stays the single easiest monitor to mount in this cage.

For a different flavor of on-set display, the TVLogic F-7H mk2 is also carried at B&H and appears on Wooden Camera's compatibility list. On the wireless side, our writeups of the Hollyland Mars 400S Pro and the older Paralinx Dart director's monitor system cover the transmitter half of the setup.

Who Should Buy the V3

Buy it if your monitor is a SmallHD 700-series or Cine 7, your receiver is a Teradek, and you want something a pound light that folds down small. In that lane it's still one of the better options going, and the four-point strap plus swing-away back are worth real money.

Skip it if you're mounting an Atomos recorder, if it'll live on a stand more than in your hands, or if you want something that feels like machined tank armor. Several reviewers described the aluminum as cheap-feeling for what they paid, and one who bought during a sale said the discount was the only reason they didn't regret it.

If you already own a Zacuto camera cage and know what that build quality feels like, calibrate down a notch. The V3 is light first and rugged second. Wooden Camera lists the V3 at B&H with a used option that turns up fairly often, which is a reasonable way to try one without paying full freight.

Frequently Asked Questions

Does the Director's Monitor Cage V3 come with a battery plate?

No. You mount your own V-mount or Gold mount plate to the swing-away back using the included M3 screws. Either grab a V-mount plate with a rod clamp separately, or buy the Gold Mount bundle that ships with one included.

What size monitors fit the V3?

Wooden Camera rates it for displays up to 9 inches. In practice, 5-inch and 7-inch monitors from SmallHD, TVLogic, Ikan, and Blackmagic fit cleanly. Atomos recorders are the known problem, with the Ninja Inferno not fitting at all and the Shogun sitting proud of the frame.

Can I mount it on a C-stand?

There's a 5/8" baby pin receiver on the underside, so technically yes. Reviewers consistently report play in that receiver even with the set screw tight, so the monitor drifts off level. Plan on a separate clamp if stand mounting is your main use.

Is the sun hood any good?

It's the weakest included item. Reviewers describe it as flimsy, and the snaps don't clear the antennas on monitors like the Cine 7. It does collapse flat around the cage for transport, which is more than most hoods manage.

Does it work with a wireless receiver mounted?

Yes, and that's the point of the swing-away plate. Pre-drilled patterns fit Teradek receivers including the Bolt 6 LT 750, and there's room for two receivers plus a battery. Cables hide behind the plate once it's closed.

How heavy is the cage on its own?

One pound, or 476 grams, before you add a monitor, battery, or receiver. Reviewers who like the cage almost always start with the weight. The catch is that a V-mount battery erases most of that advantage the moment you clip it on.
